Viola II Alternating Pressure Relief Cushion System
Patients who are immobile or have very limited mobility are prone to pressure injuries when sitting for a long time. The Viola II Alternating Pressure Relief Cushion System offers continuous pressure relief for patients at very high risk of pressure sore development. Featuring both alternating and static modes, along with customisable intensity levels, each patient can get a customised level of support.
Please Note: the Viola II Alternating Pressure Relief Cushion System requires connection to a mains power supply. If you are looking for a mobile pressure relief cushion, we recommend the Stratus Alternating Air Pressure Relief Cushion System. You can also view our full range of pressure-relieving wheelchair cushions.
What's Included?
Key Features
- Suitable for users at very high risk of pressure sore development
- Allows for around-the-clock pressure care when combined with mattress
- Suitable for patients up to 220kg in a range of chairs (large version)
- Supplied with a compact and lightweight power unit
- Features alternating and static modes, along with control dial for customisable pressure relief
- Comfort control allows manual pressure adjustment for optimal care
- Integral foam base provides additional support and stability
- Power cord is 1300mm long, giving necessary slack, without excess cable getting in the way
- Complete with a two-way stretch, waterproof cover for hygiene
- Audible and visual low pressure and power failure alarms to boost safety
- Available in two sizes, Small and Large
- Supplied with 1-year manufacturer's warranty
Who Can Use the Viola II Pressure Relief Cushion?
The Viola II is a dynamic pressure relief air cushion that offers continuous pressure relief and support for seated patients at very high risk of developing pressure ulcers. Offering high levels of patient comfort, the Viola II can support patients up to 160kg (Small) or 220kg (Large), and can be used in a range of chairs.
How Does the Viola II Pressure Relief Cushion Work?
The Viola II Pressure Relief Cushion is designed with a highly efficient alternating air cycle, which ensures the cushion moulds to the patient's shape and provides outstanding pressure re-distribution. Moreover, it features audible and visual low pressure and power failure alarms, which further enhance patient safety and ensure peace of mind for nursing staff.

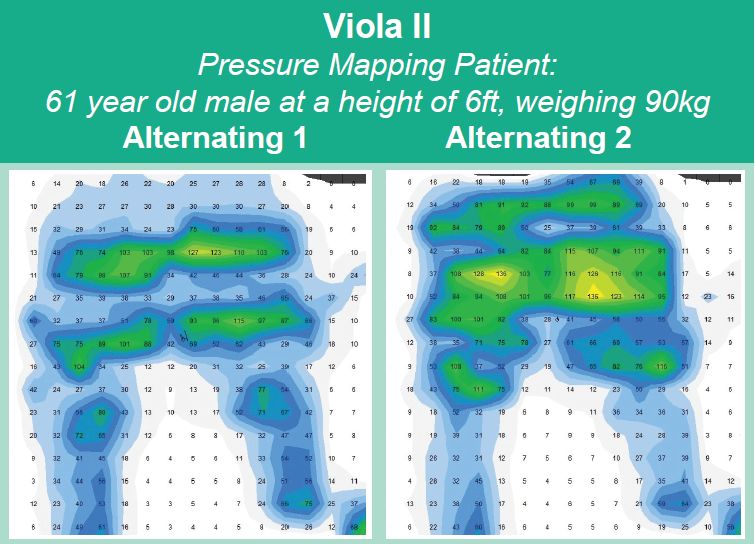

Once the Viola II System is set up, it will make sure the cushion is always optimally inflated. The graphic below shows the pressure distribution when a patient is sitting on the Viola II through two alternating air cycles.
Pressure distribution when using the Viola II Pressure Relief Cushion
What Are the Dimensions of the Viola II Pressure Relief Cushion?
This Pressure Relief Cushion is available in two sizes to suit different chairs. You can select your desired option using the drop-down menu at the top of the page. The dimensions of the cushions with diagrams are below:
- Small (LxWxH): 43 x 43 x 11cm (17 x 17 x 4.3")
.jpg)
- Large (LxWxH): 50 x 50 x 11cm (20 x 20 x 4.3")
.jpg)
How Long is the Power Cord?
For both the Small and Large models of the Viola II, the power cord measures 1300mm in length.
What Makes This Pressure Relief Cushion More Efficient Than Most?

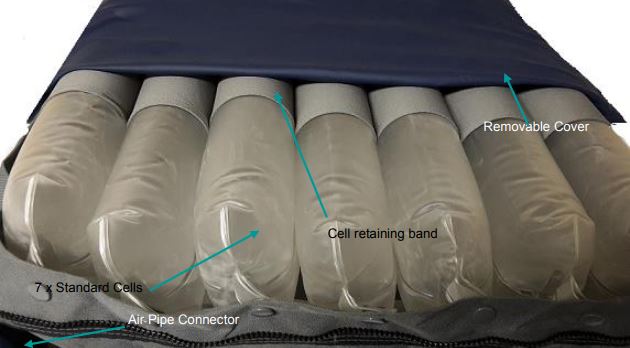

Using a highly efficient alternating air cycle, the Viola II provides the user with optimal dynamic therapy and lower interface pressures for maximum pressure reduction. This pressure reduction is boosted by an integral foam base and front support (in the Small size cushion only) to provide the user with reliable security and support.

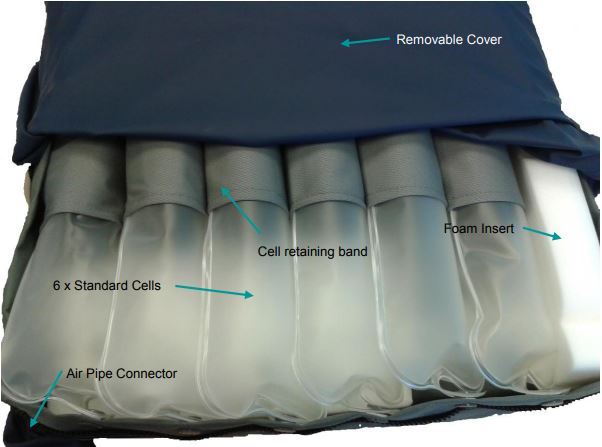

Foam inserts further enhance pressure reduction
How Easy to Set-Up Is the Viola II?
The Viola II Pressure Relief Cushion is exceptionally easy to set up even by an inexperienced user. You can have set up in three simple steps:
- Place the cushion overlay on top of the chair seat cushion, ensuring that the cushion is located as per the cushion label with the cells going across the cushion and the foam support located at the front for the Small cushion.
- The power unit can be placed on the floor underneath the chair. Ensure that the power cable is routed in such a manner so that it can't be twisted, trapped, crushed or stressed.
- To connect the cushion to the power unit, plug the cable into a suitable electrical socket and switch it "ON" using mains power switch found at the side of the power unit. The power will start the inflation and the "Normal Pressure" indicator will flash.
You can read more about setting up the Viola II in the user manual. Please click the PDF icon below to view the complete manual.
How Do You Operate the Viola II Pressure Cushion?
The Viola II is designed for simple operation and includes detailed instructions to read before using. Below are some simplified instructions to make it clear how the Viola II works:
- Place power unit pump on a flat surface or secure to the chair being used
- Place cushion on seat of chair, the air cells should be horizonal and the hose should be connected to the front side
- Attach power unit to cushion with air hose, make sure there are no knots or kinks in the hose
- Connect power cord to mains power and turn on using 'ON' switch on power unit
- Wait until the pillow is fully inflated before patient use and use control panel to adjust settings for comfort
How Does the Control Panel Work?
The power unit has a control panel with a dial and button to adjust pressure settings and modes (pictured below):
.jpg)
The diagram below gives you a clearer view of what the indicating lights show, plus how the button and dial work:
.jpg)
Is the Viola II Adjustable?
This system features an intuitive and simple comfort control system, allowing carers to quickly and easily adapt the system to their patient's needs. It allows easy setup, providing optimum performance immediately to maximise quality of care.
What Happens If Pressure Gets Too Low?
Audible and visual low pressure and power loss alarms help to improve patient safety. Carers are immediately alerted if the pressure drops too low to be functional, enabling them to react quickly to remedy the situation.
How Can I Keep the Viola II Clean?
This pressure relief cushion features a stretch waterproof cover that is vapour-permeable with an integral air pipe and an enclosed zip to reduce risks of fluid ingress, enabling reliable hygiene maintenance. The cover also helps to improve patient comfort and maintain the integrity of the patient's skin by reducing both shear and friction forces.
Removable cover helps keep the cushion hygienic
How Loud Is the Viola II?
The Viola II needs to be connected to a mains power supply at all times to provide optimal protection. This, however, does not make it uncomfortable or inconvenient to use, as the noise produced by the pump never exceeds 48dB, which is only slightly louder than a bird call (44dB).
What Are the Contraindications of the Viola II?
It is recommended that you do not use the Viola II in a number of different cases. These are:
- If you are under 12 years of age
- If you have an unstable fracture
Technical Specifications
- Minimum User Weight: 32kg (5 stone)
- Maximum User Weight:
- Small: 160kg (25 stone)
- Large: 220kg (34 stone)
- Cushion Dimensions:
- Small: 43cm x 43cm x 11cm
- Large: 50cm x 50cm x 11cm
- Power Unit Dimensions: 275 x 135 x 125mm
- Power Unit Weight: 2.3kg
- Cycle Time: 10 minutes
- Power Supply Voltage: 230V 50Hz
- Noise Level: 48dB
- Cover Material: Polyester PU
- Pressure Range: 30 - 70mmHg
- Classification: Class I Type BF
- Compliance: EN 60601-1
- Chord Length: 1300mm
Please note: This product must be connected to a mains power supply at all times to function.
User Advice
Ensure a clinical Risk Assessment is conducted, which should take account of the suitability of use of this product, patient's condition, any ancillary equipment in use and the surrounding environment. Pressure settings should be advised or prescribed by a medical practitioner.
